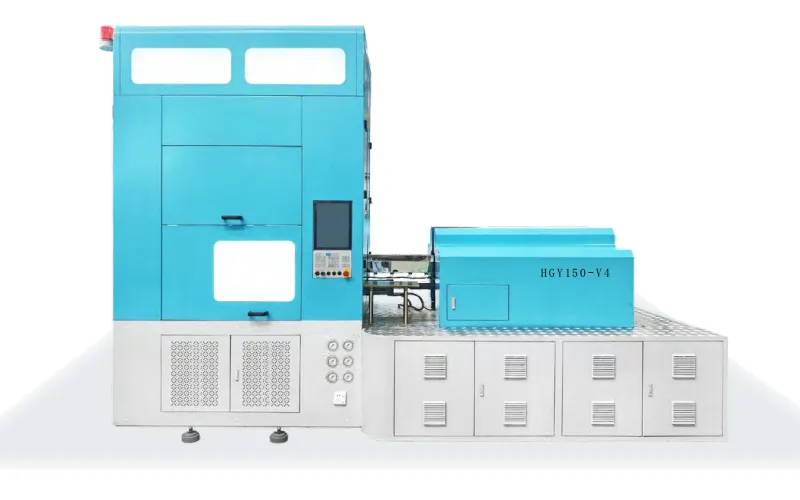

One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

Parâmetros da máquina

Parâmetro	Valor
Diâmetro do parafuso	50mm(optional);
Capacidade teórica de injeção	310g;
força de fechamento da injeção	150KN;
Upper mold stroke	250mm;
Lower mold stroke	205mm;
TEMP. Regulação do fluxo sanguíneo central	250mm;
TEMP. regulando curso do cano	230mm;
Golpe de retirada	170mm;
Força de fixação por sopro	200KN (single side);
Golpe de sopro	250mm;
moldagem por sopro	75+75mm;
Volume do tanque de óleo	300L;
Dimensões (C*L*A)	4.2*1.4*2.9m;
Peso	6T.

Especificações do produto

Item	Unidade	Valor
Nome		Máquina de moldagem por sopro e estiramento por injeção em uma única etapa (4 estações)
Modelo		HGY150-V4
Fabricante		HENGGANG
Material		PET/PETG
Diâmetro do parafuso	MM	40 50 55 60
Volume teórico de injeção	CM³	180 310 380 480
Screw Rotational Speed (RPM)	r/min	270 180 150 ~ 220
Força de fechamento da injeção	KN	150
Força de fixação por sopro	KN	200
Potência do motor	KW	43.2
Potência de aquecimento	KW	10
Pressão do ar soprando	Mpa	2.0-3.5
Pressão da água de refrigeração	Mpa	0.4-0.6
Pressão da água do resfriador de óleo da máquina	Mpa	0.3-0.4
Temperatura da água do resfriador de óleo da máquina	℃	20-25
Tensão	V	370-400
Dimensões (C*L*A)	MM	4200x1400x2900
Peso	T	6

Dimensões do produto

Quantity	PCS	1	2	3	4	5	6	7	8
Diâmetro da garrafa (BD)	MM	118	80	66	54	45	28	26
Altura da garrafa (H)	MM	210	150			100
Diâmetro do pescoço (E)	MM	83	62	48	38	32	25	17	15
Volume máximo da garrafa	ML	2500	1500	900	400	250	100	30	20
Peso máximo da garrafa (W)	G	130	65	43	32	22	18	16

Overview of One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

The One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4 is an innovative system for efficient plastic container manufacturing. This ISBM machine merges injection, stretching, and blowing in one cycle, perfect for those looking to buy one-step injection stretch blow moulding machine for optimized production. As a key model, it tackles Máquina ISBM price with competitive value and high performance. The HGY150-V4 uses three servo pump systems for stable hydraulic output, essential for 4-station blow moulding equipment seekers.

With 43.2KW servo motor power from WEICHI/VICHI, it delivers reliable core movements. The Japanese MILE PLC provides high stability and precision, managing processes accurately. For purchase ISBM machine with advanced control, this model excels in operation smoothness.

Power Configuration and Control in One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

The power setup includes 43.2KW motors, ensuring consistent performance. The imported MILE PLC guarantees anti-interference and control accuracy. This makes the HGY150-V4 suitable for HGY150-V4 specifications requiring reliability in industrial settings.

The integrated control box offers high integration, while hydraulic pressure uses Taiwan YUKEN valves for precise adjustment. Oil pipes from Italy provide corrosion resistance, enhancing durability.

Mechanical Structure and Components of One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

The turntable features Japanese Yakagawa servo motor and Taiwan indexing plate for high accuracy. The WEICHI servo with reducer ensures low noise and efficiency. American Parker valves handle high pressure, and AirTAC cylinders maintain stable actions. These position the HGY150-V4 as the best ISBM machine manufacturer choice for robust operations.

The dual hydraulic or servo clamping with compensation enables precise force control, vital for quality in energy efficient ISBM equipment for cosmetics packaging. The 10KW nano-infrared heating ring offers uniform temperature for material plasticizing.

Integrated Control and Heating Features in One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

The control system provides accuracy and ease, with options for built-in temperature regulation. This feature is key for one-step injection stretch blow moulding machine for PET bottles, ensuring optimal processing.

The injection unit uses single cylinder control, flexible for hydraulic or servo drive. Mold compatibility with ASB-12M enhances versatility for different specifications.

Energy Efficiency and Operational Parameters of One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

With 53.2KW total power, this model balances efficiency and savings. It supports diverse products, including cosmetic containers like skincare bottles for durability. In beverages, it produces PET bottles up to 2500ml with sealing.

For oil packaging, it crafts resistant bottles. Wide-mouth jars for foods aid storage. Pharmaceutical containers meet standards, and infant products use safe materials with heat resistance.

Product Versatility in One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

The HGY150-V4 handles various items, from perfume bottles to juice containers. Its 4-station design suits 4-station ISBM machine replacement for ASB AOKI, offering better efficiency and compatibility.

In cosmetics, it ensures transparent packaging. Beverages benefit from lightweight. Oil containers emphasize strength. Food jars facilitate filling. Pharmaceuticals comply with regulations. Infant items prioritize safety.

Case Studies for One-Step Injection Stretch Blow Moulding Machine(4-Station) HGY150-V4

A Guangzhou beverage plant integrated this machine, increasing capacity by 30% and reducing energy use by 25%. A Shanghai cosmetic facility replaced ASB, cutting costs 20% while improving bottle clarity.

In Beijing, a pharmaceutical company used it for medicine bottles, achieving GMP compliance and 15% efficiency gain. Shenzhen food producers noted better jar uniformity for sauces. Qingdao infant manufacturers reported enhanced product safety and output consistency.
